【Technical Feature】

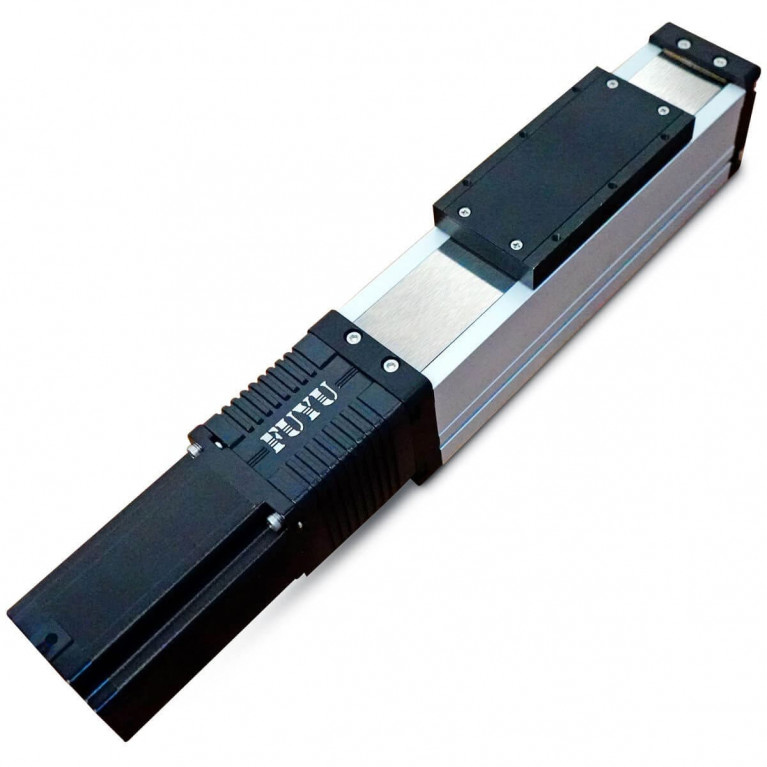

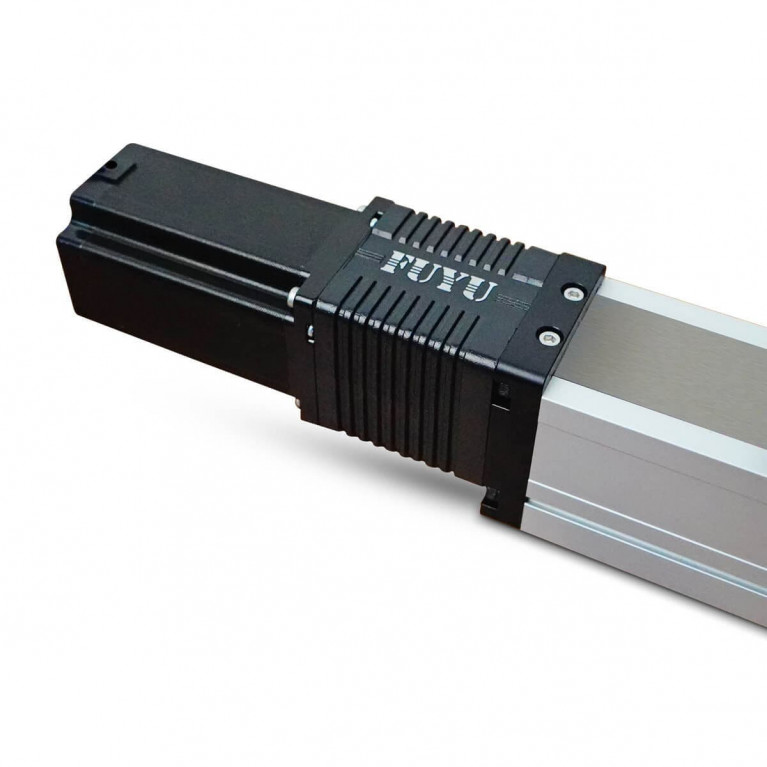

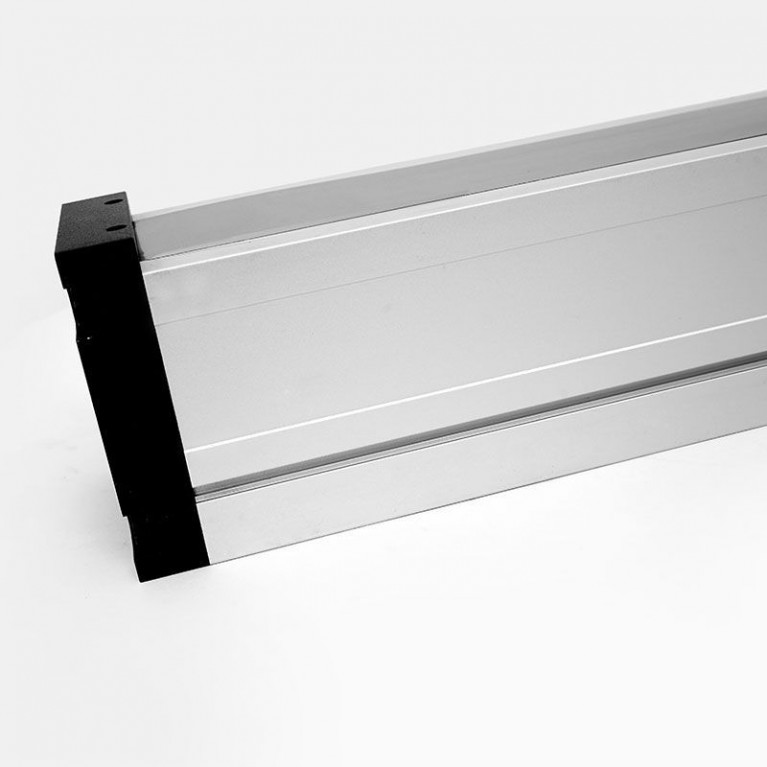

FSL60 linear guide, fully sealed structure, body width 60mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small compression,hard object collision without deformation, oleic acid resistance, high temperature resistance, long service life.

【Range of Application】

It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dust free workshops or special fields such as electronics and medical equipment, such as film, Discount, IC printing, CCD online testing, solder automation equipment.

Certification: ISO, CE, FCC, RoHS
Series: FSL60
Stroke Range: 50mm~1200mm
Reapted Position Accuracy: 0.02mm
Max Speed: 300mm/s
Max Load: 40kg
Ball Screw: G1610

Ball Screw Drive linear Positioning Tables

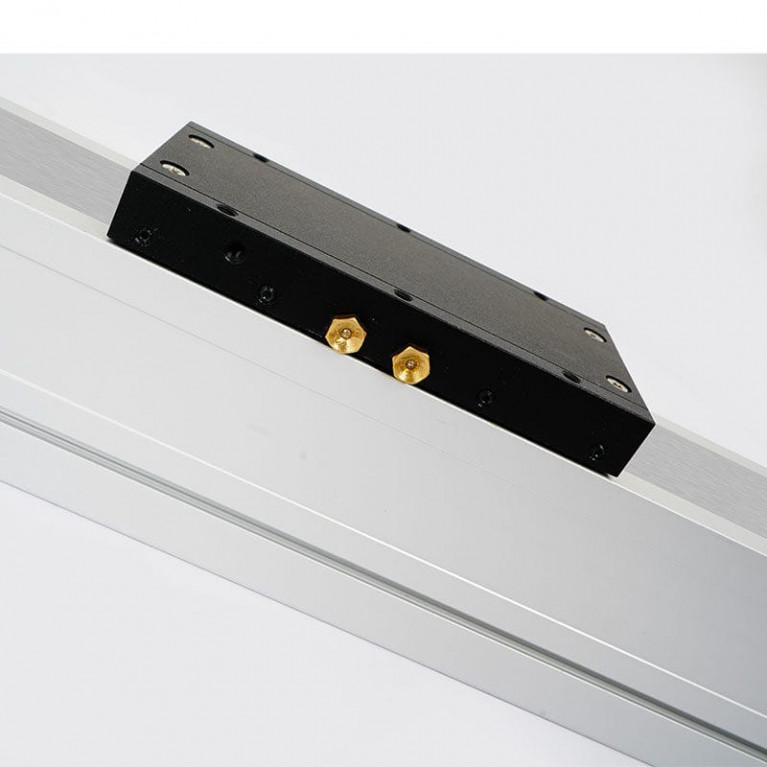

linear Positioning Tables consist of Linear Guideway unit and ballscrew unit. For saving space, FUYU product combine the carriage of linear guideway and nut o f ballscrew to a integral Carriagenut. The carriagenut cooperate high rigidity to achieve the high rigidity and high accuracy in the minimal space, especially to saving time of installation.

To get professional service, we have some questions for you,
please try to answer in your enquiry:
1.What machine do you use the stage on?
2.How long stroke do need the linear be?
3.How is the load and speed need?
4.Do need motor and accessory together?
If need OEM or other special requirement, please tell us.
